VF Solenoid Valve

Feature:

VF series solenoid valve
1.The size is same as SMC's VF series.
2.introduced from China
3.position: two and three

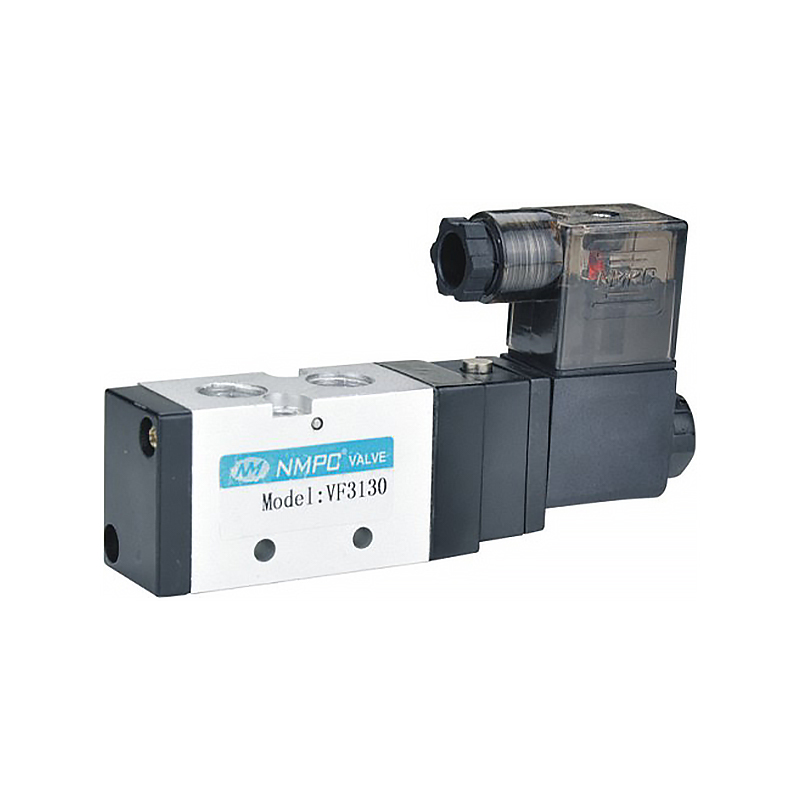

VF Series Solenoid Valve VF3130 VF5120

1: VF3 Series VF5 Series and VZ5 Series

2:VF, VZ single-coil Double-position,Double-coil Double-position or Double-coil Three-position close center/Exhaust center/Pressure center

3:connector and lead wire for your option

4:DC12/24V, AC 24/110/220/380V for your option

5:Manifold:VF3000M for VF3 Series, VF5000M for VF5 Series and VZ5000M for VZ5 Series

Get a Quote

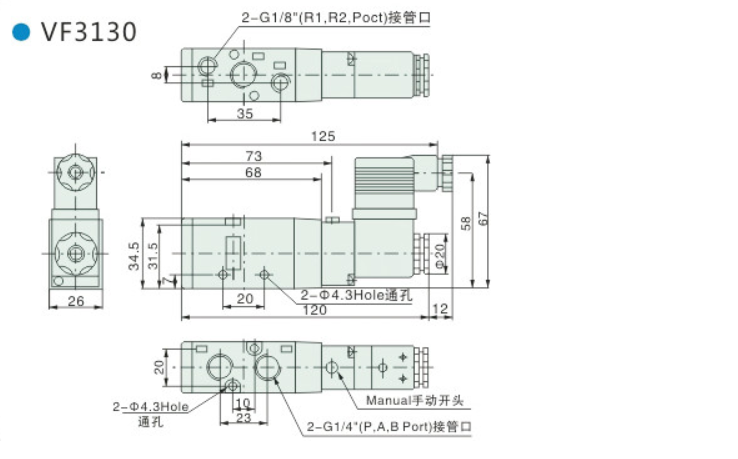

Model	VF3130
Position and way NO.	5/2 way
Effective area	25mm2(CV=1.40)
Fluid	40 micron fi ltered air
Operation	Inside pilot type
Operating pressure	0.15-0.8MPa
Proof pressure	1.2MPa
Operation temperature	5~50 C
Allowable boltage	±10%
Power consumption	AC: 5.5VA DC: 4.8W
Coil insulation &protection grade	Class F.IP65
Electriacl entry	Lead wire or connector
Higest action frequency	5 cycle/second
Shortest excitation time	0.05 second

Ningbo Xinmadi Automation Technology Co., Ltd. is a company withstrength for specialized manufacture of pneumatic products. Through constantinnovation，struggle and development in recent years,the company hasformed a modern enterprise integrating new product development,streamlined operation of production and strong sales network. Motivated by strong awareness of quality and market, the core leaders ofthe company bring along the staff to aim at creation of quality products andunite as a whole.The production is carried out in accordance with iso9001quality system. The advanced equipment and complete testing facilitieshave ensured the high quality of products. As China Custom VF Solenoid Valve Suppliers and VF Solenoid Valve Company, The major products of the company are pneumatic components includingair source processing units, solenoid valves, air cylinders and accessories.The products have complete specifications and attractive appearance andare popular among clients. The company will take quality,reasonable price and considerateservice as the business philosophy. When distributing its products to thewhole country, the company also handles export to southeast asia, middleeast and europe and sets business outlets in large and middle sized cities inthe country. We sincerely wish to have effective communication and interactedoperation with new and old clients to achieve mutual progress and success inbusiness.
